PT104-SC 1 Button Push-to-Call Outdoor Phone

The Project Telecom PT104-SC Push-to-Call Outdoor Telephone is a rugged communications device developed for environments where fast, reliable voice contact is required. Combining simple one-button operation with industrial-grade construction, the PT104-SC allows users to instantly connect with a pre-configured contact, making it suitable for emergency assistance points, security applications, transport infrastructure and industrial facilities.

Available with Analogue, SIP or GSM / 4G connectivity, the PT104-SC can be integrated into existing telephone networks, modern IP communications systems or mobile network environments. This flexibility allows the telephone to be deployed across a wide range of installations, from traditional telephony systems to remote sites with no fixed communications infrastructure.

Constructed from corrosion-resistant die-cast aluminium and protected by an IP66-rated weatherproof enclosure, the PT104-SC is designed to perform reliably in exposed outdoor and industrial environments. Its vandal-resistant and open-access weatherproof design allow users to place calls immediately without opening doors or protective covers.

The PT104-SC is available in Yellow, Blue, Red and Grey finishes, enabling organisations to select a colour that complements site safety requirements, visibility considerations or corporate standards.

Suitable applications include manufacturing facilities, warehouses, transport terminals, rail infrastructure, utility sites, marine environments, ports, tunnels, construction projects, car parks, public help points and critical infrastructure installations.

Engineered for Challenging Environments

The PT104-SC has been designed specifically for locations where communication equipment must withstand exposure to weather, dust, moisture, impacts and potential vandalism. Its robust die-cast aluminium enclosure is protected by a durable industrial epoxy powder-coated finish, providing long-term resistance against corrosion and environmental wear.

An IP66 protection rating safeguards the internal electronics against dust ingress and water exposure, while the open-access design enables immediate operation when assistance is required.

Heavy-duty components, vandal-resistant construction and tamper-resistant mounting hardware make the PT104-SC particularly well suited to public-access areas, remote installations and mission-critical infrastructure projects where reliability is paramount.

One-Touch Calling

Operation is intentionally simple. Users press the single vandal-resistant stainless-steel call button to automatically dial a programmed destination such as a control room, security office, maintenance team, customer service centre or emergency contact.

The straightforward push-to-call design eliminates complicated user interaction and helps ensure rapid access to support whenever required.

Handsfree Voice Communication

The PT104-SC provides high quality handsfree two way auddio, allowing natural two-way conversations without the need for a handset.

By removing the handset, overall reliability is improved and maintenance requirements are reduced, making the telephone particularly suitable for high-usage industrial and public environments.

Designed for Long Service Life

Built for continuous operation, the PT104-SC combines heavy-duty materials, weatherproof protection and vandal-resistant construction to deliver dependable performance over many years.

With a calculated MTBF of more than 50,000 hours, the telephone helps minimise downtime and maintenance costs in critical communication applications.

Non-volatile memory retains stored speed-dial programming even during power interruptions, helping ensure uninterrupted operation.

Accessibility Features

For installations requiring hearing aid compatibility, an optional inductive coupler can be supplied.

This option improves accessibility for hearing-impaired users while maintaining the telephone's simple handsfree operating format.

*Note - Hearing aid symbol shown in product images for illustrative purposes only. Inductive coupler available on request at an additional cost.

Connectivity Options

Analogue Version

The analogue model is designed for direct connection to conventional analogue telephone lines, including PSTN and analogue PABX systems.

Powered directly from the telephone line, it provides a dependable communications solution for facilities operating traditional telephony infrastructure. Features include push-to-call autodialling, incoming call support and local or remote programming capabilities.

SIP Version

The SIP version connects to VoIP networks, IP-PBX platforms and SIP telephone systems via standard Ethernet connections.

Supporting SIP 2.0 protocols, dual SIP server registration, PoE power and browser-based configuration, the SIP model provides a scalable solution for modern communications environments.

Additional functionality includes VLAN support, DHCP, PPPoE, STUN, advanced voice codecs and echo cancellation technology.

GSM / 4G Version

The GSM / 4G model operates over mobile communication networks using a Micro SIM card.

Ideal for remote sites and locations without access to fixed telephone lines or IP infrastructure, this version supports SMS configuration, remote status reporting and deployment via GSM and 4G LTE networks.

Typical applications include utility installations, transport infrastructure, construction projects and temporary communication points.

Colour Options

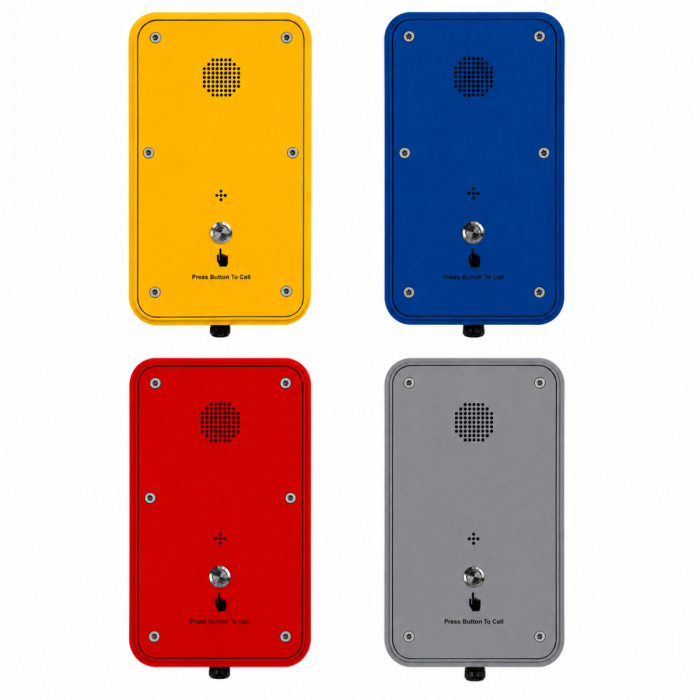

The PT104-SC is available in four colour finishes - Yellow, Blue, Red and Grey.

These options allow the telephone to meet site-specific visibility, safety and operational requirements.

Features

• Heavy-Duty Push-to-Call Outdoor Telephone
• Designed for Harsh Outdoor and Industrial Environments Including Warehouses, Factories, Manufacturing Facilities, Transport Infrastructure, Car Parks, Public Areas, Construction Sites, Ports, Docks and Airports
• Push-to-Call Autodial Operation
• Available with Analogue, SIP VoIP or GSM / 4G Mobile Network Connectivity
• Handsfree High Quality Two Way Voice Communication
• IP66 Weatherproof Protection as Standard
• IP67 Version Available on Request
• Open-Access Weatherproof Design
• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Robust Vandal-Resistant Construction
• Stainless-Steel Vandal-Resistant Push Button
• Non-Volatile Memory for Speed Dial Programming
• Dry Contact Relays Available on Request
• Choice of Customised Labelling Available
• Inductive Coupler Available on Request
• Easy Installation with Tamper-Proof Bars and Fixings
• Lightning and Transient Protection
• MTBF Exceeding 50,000 Hours
• CE, FCC and RoHS Compliant
• Available in Yellow, Blue, Red and Grey Finishes

Specifications

Connectivity Options

Analogue Version

• Standard Analogue Telephone Line Connection
• Compatible with PSTN Networks
• Compatible with Analogue PABX Systems
• Push-to-Call Autodial Function
• Incoming Call Capability
• DTMF Remote Programming
• Internal Programming Keypad
• Powered Directly from Telephone Line
• MF (Tone) Dialling
• Lightning and Transient Protection to ITU-T K.21 Enhanced Levels

SIP Version

• SIP 2.0 (RFC3261) Compatible
• Supports Registration with Two SIP Servers
• WAN Port – 10/100Base-T RJ45 Auto MDIX
• LAN Port – 10/100Base-T RJ45 Auto MDIX
• Power Supply – PoE or 12V DC PSU
• Web-Based Configuration Interface
• SIP Domain and Authentication Support
• DHCP Support
• PPPoE Support
• VLAN Support
• STUN Support
• Bridge Mode Support
• Supports G.711 A-law / μ-law, G.722, G.723.1, G.726 and G.729 Codecs
• Echo Cancellation (G.168)
• Full Duplex Communication

GSM / 4G Version

• GSM / 4G Mobile Network Operation
• Supports Micro SIM Card
• SMS Configuration
• SMS Remote Status Reporting
• 4G LTE FDD – B1 / B3 / B5 / B7 / B8 / B20
• LTE TDD – B38 / B40 / B41
• WCDMA – B1 / B5 / B8
• GSM – B3 / B8
• Power Input – 7.4V–12V DC
• Idle Current – 75mA
• Off-Hook Current – 160mA

Audio Features

• Handsfree Full Duplex Voice Communication
• High-Quality Two-Way Audio
• Shrill Warble Ringing Tone
• Approx. 80–90 dBA Ringing Volume at 1 Metre (Version Dependent)

Construction

• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Stainless-Steel Push Button
• Open-Access Weatherproof Design
• Robust Vandal-Resistant Construction
• Tamper-Proof Mounting Bars and Fixings

Protection Features

• IP66 Weatherproof Protection
• IP67 Available on Request
• Conforms to EN60529
• Lightning and Transient Protection
• Vandal-Resistant Design

Accessibility Features

• Optional Inductive Coupler for Hearing Aid Compatibility (Available on Request – Additional Charge Applies)

Environmental Specifications

• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +75°C
• MTBF Exceeding 50,000 Hours

Compliance

• CE Certified
• FCC Compliant
• RoHS Compliant

Dimensions & Weight

• Dimensions - 204mm x 334mm x 74mm
• Gross Weight - 6kg

Package Contents

• Project Telecom PT104-SC Push-to-Call Outdoor Phone (Connection Type and Colour Option to be Selected at Checkout)
• Tamper-Resistant Mounting Hardware
• User Documentation
