PT104-4B 4 Button Push-to-Call Outdoor Phone

The Project Telecom PT104-4B is a robust outdoor push-to-call phone designed for dependable communications in industrial, commercial and public-access environments. Combining four programmable call buttons with an open-front IP66-rated weatherproof enclosure, vandal-resistant construction and a choice of Analogue, SIP or GSM / 4G connectivity, it provides a reliable communication point for locations where standard telephones are unsuitable.

Designed for factories, warehouses, transport infrastructure, utility sites, rail facilities, ports, marine installations, tunnels, construction projects, car parks and public help points, the PT104-4B allows users to contact one of four pre-programmed destinations at the touch of a button. The four-button layout provides dedicated access to services such as security, maintenance, reception, customer assistance, control rooms and emergency support.

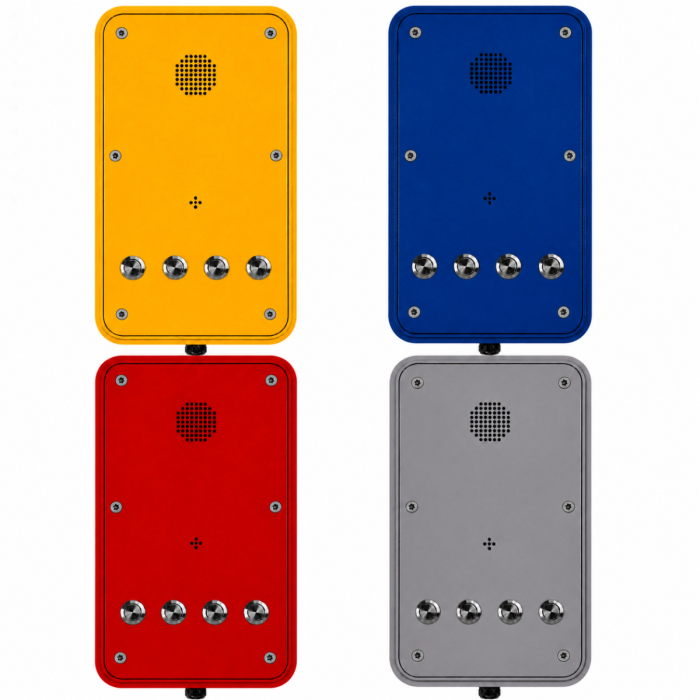

Its corrosion-resistant die-cast aluminium housing and open-access weatherproof design protect against dust, moisture and harsh weather while allowing immediate operation without opening a protective door. The telephone is available in Yellow, Blue, Red and Grey to suit a wide range of installation environments.

Rugged Construction

Built for demanding applications, the PT104-4B features a heavy-duty die-cast aluminium enclosure with a durable epoxy powder-coated finish. The vandal-resistant design, together with tamper-resistant fixings, provides excellent protection against corrosion, impact and environmental exposure, making it ideal for exposed industrial and public locations requiring dependable communications.

Four Push-to-Call Buttons

Four stainless-steel vandal-resistant buttons can each be programmed with a different contact, allowing users to place calls instantly without manual dialling. This flexible configuration enables direct access to multiple departments or services from a single communication point, making it well suited to transport facilities, industrial sites and public assistance locations.

Choice of Connectivity

The PT104-4B is available in three versions to suit different communication infrastructures:

Analogue Version

The analogue version connect directly to PSTN and analogue PABX systems, offering push-to-call autodial, incoming call capability, DTMF remote programming, an internal programming keypad and integrated lightning protection.

SIP Version

The SIP version support SIP 2.0 (RFC3261) for integration with SIP PBX systems, hosted VoIP services and IP telephone networks. Features include dual SIP registration, Power over Ethernet (PoE), browser-based programming and full duplex audio.

GSM / 4G Version

The GSM / 4G version operate over mobile networks using a Micro SIM card, providing a practical solution for remote or temporary locations where fixed telephone lines are unavailable. SMS programming and remote status reporting simplify installation and ongoing management.

Handsfree Voice Communication

The PT104-4B delivers clear, high quality two way audio, enabling natural two-way conversations without a handset. This design improves reliability, reduces wear and helps minimise maintenance in busy industrial and public environments.

Open-Front IP66 Weatherproof Design

The open-front enclosure provides immediate access to all four call buttons while maintaining IP66-rated protection against dust and water ingress. Its sealed, corrosion-resistant construction is designed for reliable year-round operation in harsh outdoor, transport and industrial environments.

Accessibility & Reliability

An optional inductive coupler is available for hearing aid compatibility, improving accessibility while retaining straightforward handsfree operation.

*Note - The hearing aid symbol shown in product images is for illustrative purposes only. The inductive coupler is available on request at additional cost.

For dependable long-term performance, the PT104-4B incorporates non-volatile memory that preserves programmed settings during power interruptions, reducing maintenance and allowing the telephone to return to normal operation without reprogramming.

Features

• Heavy-Duty Push-to-Call Outdoor Phone
• Open Access Weatherproof Design
• Four Independently Programmable Stainless-Steel Push-to-Call Buttons
• Available with Analogue, SIP or GSM / 4G Connectivity
• Designed for Harsh Outdoor and Industrial Environments
• Available in Yellow, Blue, Red and Grey Finishes
• Handsfree High Quality Two-Way Voice Communication
• IP66 Weatherproof Protection
• IP67 Version Available on Request
• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Vandal-Resistant Construction
• Non-Volatile Memory
• Remote Configuration (Version Dependent)
• Optional Dry Contact Relay Outputs
• Lightning & Transient Protection (Analogue Version Only)
• Optional Inductive Coupler for Hearing Aid Compatibility
• MTBF Exceeding 50,000 Hours
• CE, FCC & RoHS Compliant

Specifications

Connectivity Options

Analogue Version

• Standard Analogue Telephone Line Connection
• Compatible with PSTN Networks
• Compatible with Analogue PABX Systems
• Push-to-Call Autodial Function
• Incoming Call Capability
• DTMF Remote Programming
• Internal Programming Keypad
• Powered Directly from Telephone Line
• MF (Tone) Dialling
• Lightning & Transient Protection to ITU-T K.21 Enhanced Levels

SIP Version

• SIP 2.0 (RFC3261) Compatible
• Supports Registration with Two SIP Servers
• WAN Port - 10/100Base-T RJ45 Auto MDIX
• LAN Port - 10/100Base-T RJ45 Auto MDIX
• Power Supply - PoE or Optional 12V DC PSU
• Web-Based Configuration Interface
• SIP Domain & Authentication Support
• DHCP Support, PPPoE Support, VLAN Support, STUN Support
• Bridge Mode Support
• Supports G.711 A-law / μ-law, G.722, G.723.1, G.726 & G.729 Codecs
• Acoustic Echo Cancellation (G.168)
• Full Duplex Voice Communication

GSM / 4G Version

• GSM / 4G Mobile Network Operation
• Micro SIM Card Support
• SMS Remote Programming
• SMS Remote Status Reporting
• 4G LTE FDD - B1 / B3 / B5 / B7 / B8 / B20
• LTE TDD - B38 / B40 / B41
• WCDMA - B1 / B5 / B8
• GSM - B3 / B8
• Power Input - 7.4V–12V DC
• Idle Current - 75mA
• Off-Hook Current - 160mA

Audio Features

• Handsfree Full Duplex Voice Communication
• High-Quality Two-Way Audio
• 80–90 dBA Ringing Volume (Version Dependent)

Construction

• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Four Stainless-Steel Push Buttons
• Open Access Front Panel Design
• Tamper-Resistant Mounting Bars
• Vandal-Resistant Construction

Protection Features

• IP66 Weatherproof Protection
• IP67 Available on Request
• EN60529 Compliant
• Lightning Protection (Analogue Version Only)
• Vandal-Resistant Design

Accessibility

• Optional Inductive Coupler for Hearing Aid Compatibility (Available on Request – Additional Charge Applies)

Environmental Specifications

• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +75°C
• MTBF Exceeding 50,000 Hours

Compliance

• CE Certified
• FCC Compliant
• RoHS Compliant

Dimensions & Weight

• Dimensions - 204 × 334 × 74mm
• Gross Weight - 6kg

Package Contents

• Project Telecom PT104-4B 4 Button Push-to-Call Outdoor Phone with Open Access Front (Connectivity and Colour Option to be Selected at Checkout)
• Tamper-Resistant Mounting Hardware
• User Documentation
