PT104-2B 2 Button Push-to-Call Outdoor Phone

The Project Telecom PT104-2B Open Access Push-to-Call Outdoor Phone is a professional communication solution engineered for reliable operation in demanding industrial, outdoor and public-access environments. Combining dual push-to-call functionality with an open access weatherproof design, IP66-rated protection, vandal-resistant construction and a choice of Analogue, SIP or GSM / 4G connectivity, the PT104-2B provides dependable communications wherever standard telephones are not suitable.

Ideal for factories, warehouses, utility sites, transport infrastructure, rail networks, ports, tunnels, marine facilities, construction projects, car parks and public assistance locations, the telephone allows users to contact one of two independently programmed destinations by pressing a single button. The dual-button layout enables separate contacts to be assigned for security personnel, maintenance departments, customer assistance teams, control rooms or emergency support.

Constructed from corrosion-resistant die-cast aluminium, the PT104-2B features an open access weatherproof design that protects the internal components from dust, moisture and harsh weather while allowing the call buttons to be operated immediately without opening a protective front door.

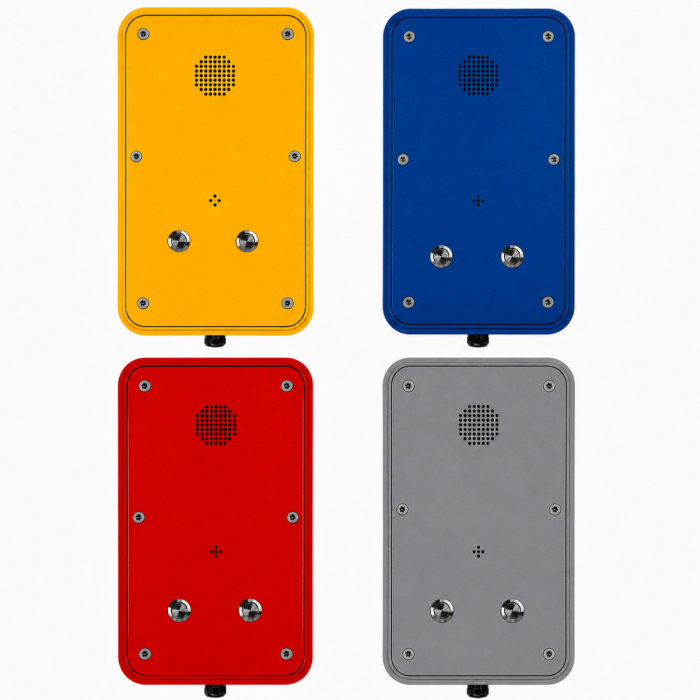

Available in Yellow, Blue, Red and Grey, the PT104-2B can be selected to complement site safety schemes, visibility requirements and installation preferences.

Heavy-Duty Construction

Designed specifically for demanding industrial and public-access installations, the PT104-2B incorporates a robust die-cast aluminium enclosure finished with a durable industrial-grade epoxy powder coating and an open access front panel.

Its heavy-duty construction offers excellent resistance to weather, dust, moisture, impacts and vandalism. Tamper-resistant mounting bars and security fixings provide additional protection, making the telephone ideal for exposed locations where dependable communications are essential.

Built for continuous operation, the PT104-2B delivers reliable performance in manufacturing plants, transport facilities, utilities, ports, construction sites, marine environments and other challenging locations.

Dual Push-to-Call Functionality

The PT104-2B is designed for simple operation using two vandal-resistant stainless-steel push buttons. Each button can be independently programmed to automatically call a different destination, eliminating the need for users to manually dial telephone numbers.

Compared with single-button telephones, the dual-button configuration provides increased flexibility by allowing multiple departments or services to be accessed from a single communications point.

Typical applications include - Security and Information, Control Room and Maintenance, Customer Assistance and Technical Support and Emergency Assistance and Site Management.

This makes the PT104-2B an ideal solution for industrial communication systems, transport hubs, customer help points and public assistance locations where more than one contact option is required.

Flexible Connectivity Options

The PT104-2B range is available with Analogue, SIP or GSM / 4G connectivity, making it suitable for both traditional and modern communications infrastructures.

Analogue Version

The analogue model connects directly to PSTN telephone lines and analogue PABX systems. Powered directly from the telephone line, it provides a simple and reliable solution for installations using conventional telephony infrastructure.

SIP Version

The SIP version supports SIP 2.0 (RFC3261) and integrates with SIP PBX systems, hosted VoIP services and enterprise IP telephone networks. Features including dual SIP registration, Power over Ethernet (PoE) and browser-based configuration allow straightforward deployment across modern IP communications systems.

GSM / 4G Version

The GSM / 4G version operates using a Micro SIM card over GSM and 4G mobile networks, making it ideal where telephone lines or Ethernet infrastructure are unavailable. Remote SMS programming and status reporting simplify installation, monitoring and ongoing maintenance.

Handsfree Communication

The PT104-2B provides clear, natural handsfree two-way voice communication without requiring a handset.

Removing the handset improves long-term reliability while reducing wear and maintenance, making the telephone particularly suitable for busy industrial sites, transport facilities and public-access environments.

Open Access Weatherproof Design

Unlike conventional weatherproof telephones that require a protective front door to be opened before use, the PT104-2B features an open access enclosure that allows immediate operation of both call buttons.

The sealed IP66-rated enclosure protects against dust, rain and water ingress while ensuring the telephone remains instantly accessible whenever assistance is needed.

Its corrosion-resistant aluminium housing and weatherproof construction make it suitable for permanent installation in exposed industrial, transport and public-access environments throughout the year.

Accessibility & User Safety

For applications requiring hearing aid compatibility, an optional inductive coupler can be supplied to improve accessibility while maintaining the telephone's straightforward handsfree operation.

The PT104-2B also incorporates non-volatile memory, ensuring programmed settings are retained during power interruptions and helping minimise maintenance throughout the product's operational life.

*Note – The hearing aid symbol shown in product images is for illustration purposes only. The optional inductive coupler is available on request at an additional cost.

Features

• Heavy-Duty Push-to-Call Outdoor Phone
• Open Access Weatherproof Design
• Two Independently Programmable Stainless-Steel Push-to-Call Buttons
• Available with Analogue, SIP or GSM / 4G Connectivity
• Available in Yellow, Blue, Red and Grey Finishes
• Designed for Harsh Outdoor and Industrial Environments
• Handsfree Two-Way Voice Communication
• IP66 Weatherproof Protection
• IP67 Version Available on Request
• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Vandal-Resistant Construction
• Non-Volatile Memory
• Remote Configuration (Version Dependent)
• Optional Dry Contact Relay Outputs
• Optional Inductive Coupler for Hearing Aid Compatibility
• Lightning & Transient Protection (Analogue Version Only)
• Operating Temperature -30°C to +65°C
• MTBF Exceeding 50,000 Hours
• CE, FCC & RoHS Compliant

Specifications

Connectivity Options

Analogue Version

• Standard Analogue Telephone Line Connection
• Compatible with PSTN Networks
• Compatible with Analogue PABX Systems
• Push-to-Call Autodial Function
• Incoming Call Capability
• DTMF Remote Programming
• Internal Programming Keypad
• Powered Directly from Telephone Line
• MF (Tone) Dialling
• Lightning and Transient Protection to ITU-T K.21 Enhanced Levels

SIP Version

• SIP 2.0 (RFC3261) Compatible
• Supports Registration with Two SIP Servers
• WAN Port - 10/100Base-T RJ45 Auto MDIX
• LAN Port - 10/100Base-T RJ45 Auto MDIX
• Power Supply - PoE or 12V DC PSU
• Web-Based Configuration Interface
• SIP Domain and Authentication Support
• DHCP Support
• PPPoE Support
• VLAN Support
• STUN Support
• Bridge Mode Support
• Supports G.711 A-law / μ-law, G.722, G.723.1, G.726 and G.729 Codecs
• Echo Cancellation (G.168)
• Full Duplex Communication

GSM / 4G Version

• GSM / 4G Mobile Network Operation
• Micro SIM Card Support
• SMS Configuration
• SMS Remote Status Reporting
• 4G LTE FDD - B1 / B3 / B5 / B7 / B8 / B20
• LTE TDD - B38 / B40 / B41
• WCDMA - B1 / B5 / B8
• GSM - B3 / B8
• Power Input - 7.4V–12V DC
• Idle Current - 75mA
• Off-Hook Current - 160mA

Audio Features

• Handsfree Full Duplex Voice Communication
• High-Quality Two-Way Audio
• 80–90 dBA Ringing Volume (Version Dependent)

Construction

• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Two Stainless-Steel Push Buttons
• Open Access Front Panel Design
• Tamper-Resistant Mounting Bars
• Vandal-Resistant Construction

Protection Features

• IP66 Weatherproof
• IP67 Available on Request
• EN60529 Compliant
• Lightning Protection (Analogue Version Only)
• Vandal Resistant

Accessibility

• Optional Inductive Coupler for Hearing Aid Compatibility (Available on Request – Additional Charge Applies)

Environmental Specifications

• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +75°C
• MTBF Exceeding 50,000 Hours

Compliance

• CE Certified
• FCC Compliant
• RoHS Compliant

Dimensions & Weight

• 204mm  x 334mm x 74 mm
• Gross Weight - 6 kg

Package Contents

• Project Telecom PT104-2B 2 Button Push-to-Call Outdoor Phone with Open Front (Connection and Colour Option to be Selected at Checkout)
• Tamper-Resistant Mounting Hardware
• User Documentation
