PT102-2B 2 Button Push-to-Call Outdoor Phone

The Project Telecom PT102-2B Push-to-Call Outdoor Phone is a robust communication solution developed for industrial sites, public-access areas and outdoor installations where dependable operation is essential. Featuring dual programmable call buttons, a weather-sealed protective door, IP66-rated weatherproof protection, vandal-resistant construction and a choice of Analogue, SIP or GSM / 4G connectivity, the PT102-2B provides reliable communications in environments where conventional telephones may not be suitable.

Designed for warehouses, manufacturing plants, utility facilities, transport infrastructure, rail networks, ports, tunnels, construction sites, car parks and public assistance points, the telephone enables users to contact one of two pre-programmed destinations with a single button press. The dual-button arrangement allows organisations to assign separate contacts for security, maintenance teams, customer support, control rooms or emergency assistance.

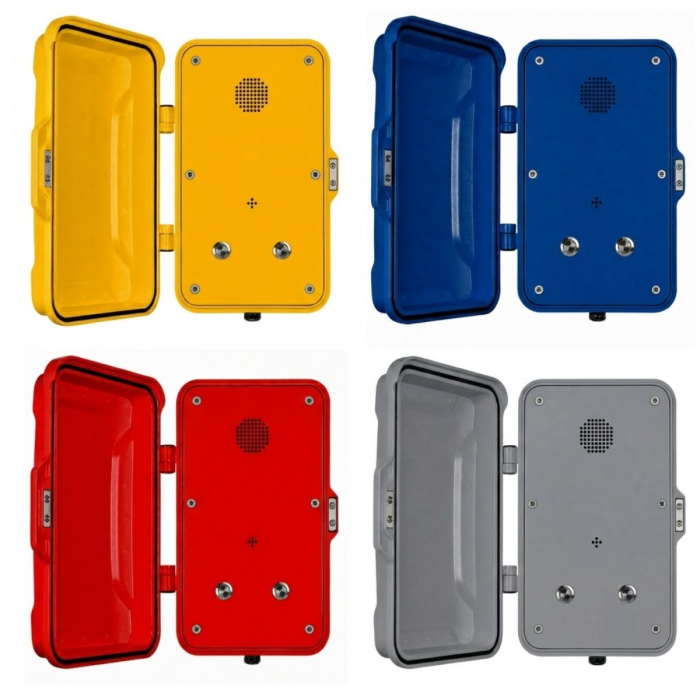

Constructed from corrosion-resistant die-cast aluminium and protected by a weather-sealed front door, the PT102-2B is built to withstand dust, moisture and harsh weather conditions. The telephone is available in Yellow, Blue, Red and Grey finishes, allowing it to meet site visibility requirements, colour coding schemes and installation preferences.

Heavy-Duty Construction

Purpose-built for demanding industrial and public environments, the PT102-2B features a rugged die-cast aluminium enclosure finished with a durable industrial epoxy powder coating.

The heavy-duty construction provides excellent resistance against rain, dust, moisture, impact damage and deliberate vandalism. Tamper-resistant mounting bars and security fixings further improve protection, making the telephone well suited to exposed locations where equipment reliability is critical.

Designed for continuous long-term service, the PT102-2B offers dependable communications across manufacturing facilities, transport networks, utility sites, marine installations, construction projects and other challenging environments.

Dual Push-to-Call Functionality

Simple operation is provided by two vandal-resistant stainless-steel push buttons. Each button can be independently programmed to call a separate destination automatically, allowing users to make contact without dialling telephone numbers.

Compared with single-button telephones, the dual-button design offers greater flexibility by providing direct access to multiple departments or services from one communication point. Typical applications include Security and Information, Maintenance and Control Rooms, Customer Assistance and Technical Support, or Emergency Services and Site Management.

This makes the PT102-2B particularly suitable for industrial communications, transport facilities, public help points and locations where users require more than one contact option.

Multiple Connectivity Options

To suit different communication systems, the PT102-2B is available in Analogue, SIP and GSM / 4G versions.

Analogue Version

The analogue model connects directly to conventional telephone lines or analogue PABX systems. As it is powered from the telephone line itself, installation is simple for sites using traditional telephony infrastructure.

SIP Version

The SIP version supports SIP 2.0 (RFC3261) and is compatible with SIP PBX systems, hosted VoIP platforms and enterprise IP telephone networks. Features such as dual SIP server registration, Power over Ethernet (PoE) and browser-based configuration provide flexible deployment across modern IP communication systems.

GSM / 4G Version

The GSM / 4G model operates over mobile networks using a Micro SIM card, making it ideal for locations where fixed telephone lines or network cabling are unavailable. SMS-based remote programming and remote status monitoring help simplify installation, maintenance and system management.

Handsfree Communication

The PT102-2B is designed for convenient handsfree use, providing clear two-way voice communication that allows natural conversations without requiring a handset.

Removing the handset improves reliability while reducing wear and maintenance, making the telephone particularly well suited to busy industrial facilities, transport environments and public-access installations.

IP66 Weatherproof Protection

The telephone is protected by a fully weatherproof enclosure incorporating a weather-sealed front door that helps achieve IP66-rated protection against dust, rain and water ingress. For more demanding applications, an IP67 version is available upon request.

Designed for permanent outdoor installation, the enclosure safeguards internal components from harsh environmental conditions while ensuring reliable operation throughout the year.

Accessibility & User Safety

An optional inductive coupler can be supplied for installations requiring hearing aid compatibility. This optional accessory improves accessibility for hearing aid users while maintaining the telephone's straightforward handsfree operation.

*Note – The hearing aid symbol shown in product photographs is for illustration purposes only. The inductive coupler is available on request and is supplied at an additional cost.

The non-volatile memory retains programmed settings during power interruptions, helping maintain reliable operation while reducing maintenance requirements over the lifetime of the installation.

Features

• Heavy-Duty Push-to-Call Outdoor Phone
• Two Independently Programmable Stainless-Steel Push-to-Call Buttons
• Available with Analogue, SIP VoIP or GSM / 4G Connectivity
• Designed for Harsh Outdoor and Industrial Environments Including Warehouses, Factories, Manufacturing Facilities, Transport Infrastructure, Car Parks, Public Areas, Construction Sites, Ports, Docks and Airports
• Handsfree Two-Way Voice Communication
• IP66 Weatherproof Protection
• IP67 Version Available on Request
• Weather-Sealed Protective Front Door
• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Vandal-Resistant Construction
• Tamper-Resistant Mounting Bars and Fixings
• Non-Volatile Memory
• Remote Configuration Options (Version Dependent)
• Optional Dry Contact Relay Outputs Available on Request
• Optional Inductive Coupler for Hearing Aid Compatibility (Available on Request – Additional Charge Applies)
• Lightning and Transient Protection to ITU-T K.21 Enhanced Levels
• Operating Temperature Range from -30°C to +65°C
• MTBF Exceeding 50,000 Hours
• CE, FCC and RoHS Compliant
• Available in Yellow, Blue, Red and Grey Finishes

Specifications

Connectivity Options

Analogue Version

• Standard Analogue Telephone Line Connection
• Compatible with PSTN Networks
• Compatible with Analogue PABX Systems
• Push-to-Call Autodial Function
• Incoming Call Capability
• DTMF Remote Programming
• Internal Programming Keypad
• Powered Directly from Telephone Line
• MF (Tone) Dialling
• Lightning and Transient Protection to ITU-T K.21 Enhanced Levels

SIP Version

• SIP 2.0 (RFC3261) Compatible
• Supports Registration with Two SIP Servers
• WAN Port - 10/100Base-T RJ45 Auto MDIX
• LAN Port - 10/100Base-T RJ45 Auto MDIX
• Power Supply - PoE or 12V DC PSU
• Web-Based Configuration Interface
• SIP Domain and Authentication Support
• DHCP Support
• PPPoE Support
• VLAN Support
• STUN Support
• Bridge Mode Support
• Supports G.711 A-law / μ-law, G.722, G.723.1, G.726 and G.729 Codecs
• Echo Cancellation (G.168)
• Full Duplex Communication

GSM / 4G Version

• GSM / 4G Mobile Network Operation
• Micro SIM Card Support
• SMS Configuration
• SMS Remote Status Reporting
• 4G LTE FDD - B1 / B3 / B5 / B7 / B8 / B20
• LTE TDD - B38 / B40 / B41
• WCDMA - B1 / B5 / B8
• GSM - B3 / B8
• Power Input - 7.4V–12V DC
• Idle Current - 75mA
• Off-Hook Current - 160mA

Audio Features

• Handsfree Full Duplex Voice Communication
• High-Quality Two-Way Audio
• Shrill Warble Ringing Tone
• Approx. 80–90 dBA Ringing Volume at 1 Metre (Version Dependent)

Construction

• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Stainless-Steel Push Button
• Weatherproof Protective Front Door
• Robust Vandal-Resistant Construction
• Tamper-Proof Mounting Bars and Fixings

Protection Features

• IP66 Weatherproof Protection
• IP67 Available on Request
• Conforms to EN60529
• Lightning and Transient Protection
• Vandal-Resistant Design

Accessibility Features

• Optional Inductive Coupler for Hearing Aid Compatibility (Available on Request – Additional Charge Applies)

Environmental Specifications

• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +75°C
• MTBF Exceeding 50,000 Hours

Compliance

• CE Certified
• FCC Compliant
• RoHS Compliant

Dimensions & Weight

• Dimensions - 204mm x 334mm x 126mm
• Gross Weight - 7kg

Package Contents

• Project Telecom PT102-2B Push-to-Call Outdoor Phone with Weatherproof Front Door (Connection and Colour Option to be Selected at Checkout)
• Tamper-Resistant Mounting Hardware
• User Documentation
